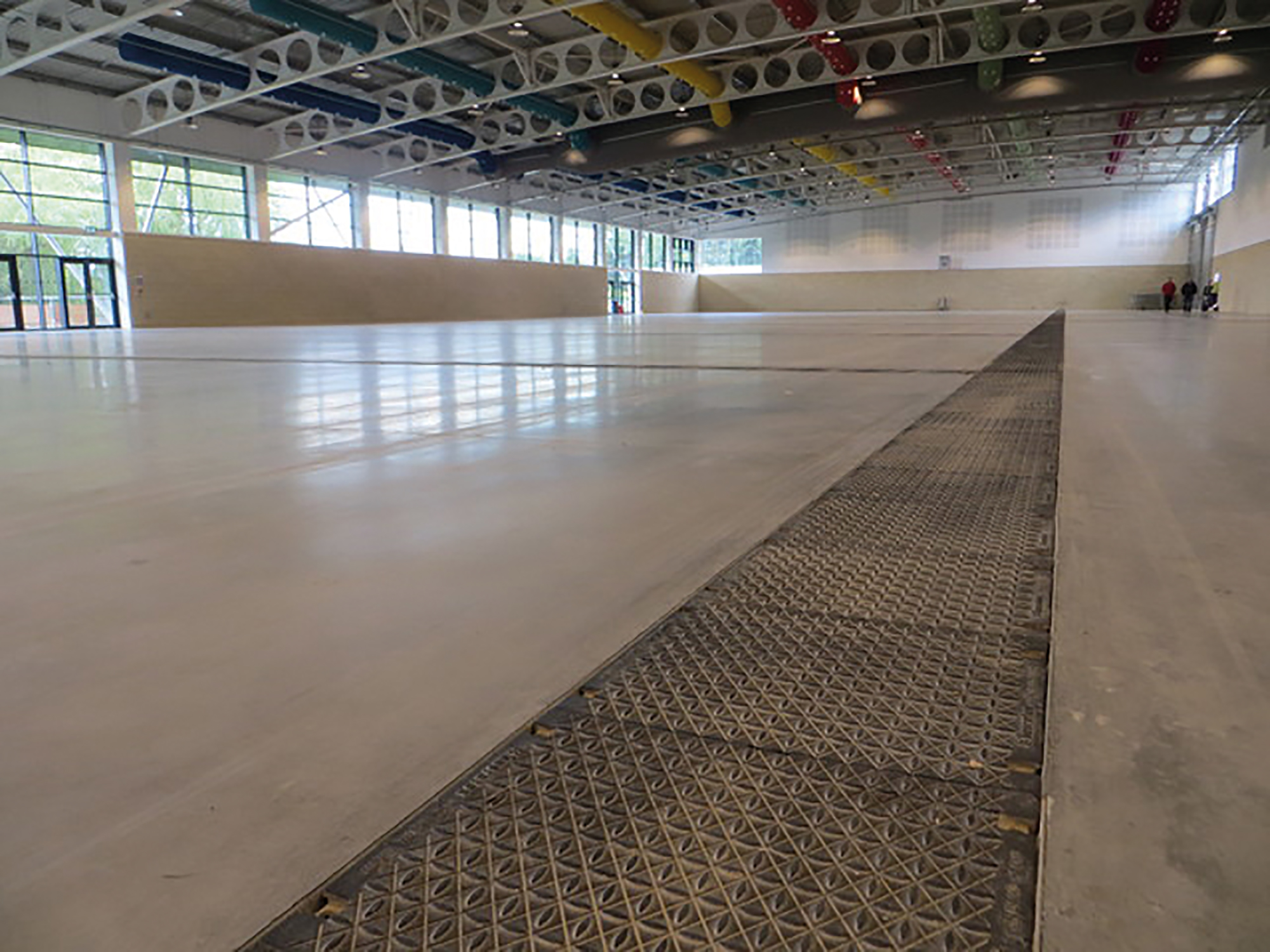

SERVICE CHANNEL | Industry & exhibition
IDEAL FOR: applications for laying cables and lines in the ground which can be easily accessed at all times and the surfaces of which are driven on with heavy wheel loads.
YOUR BENEFITS WITH SERVICE CHANNEL FASERFIX KS
HIGH-PERFORMANCE ANGLE HOUSING & BOLTLESS LOCKING SYSTEM SIDE-LOCK
= Cost savings | Quality assured
HIGH-PERFORMANCE ANGLE HOUSING & BOLTLESS LOCKING SYSTEM SIDE-LOCK
- 20 mm x 20 mm angle housing and inlaying grating
- extremely stable connection between steel angle housing and concrete channel body
- 10 fixing points for gratings per metre (incl. 2 times with optional locking handle)
- extra protection against lateral movement
- 90 % time savings in fixing the grating with SIDE-LOCK (compared to a conventional fixing)
- replace and insert the grating without any special tool a screwdriver is enough
= Cost savings | Quality assured
HIGH STABILITY
- maximum lateral stability
- extra thick wall thickness compared to many competitor products, for additional safety in extreme situations
- installationforasphaltedsurfaces up to class E 600, without concrete stretcher
= Performance assured | Longevity
HIGH-GRADE MATERIAL
- ”Made in Germany”
- maximum stability due to fibre reinforced concrete (polypropylene fibres) with low weight
- strong adhesion on foundation concrete (same coefficient)
- installation without cover possible
- fire resistance class A1 (non-flammable) according to DIN 4102
= Longevity | Quality assured
UNIQUE DUCTILE IRON GRATINGS WITH NUMEROUS COMBINATION OPTIONS
= Design Flexibility | Performance assured
UNIQUE DUCTILE IRON GRATINGS WITH NUMEROUS COMBINATION OPTIONS
- high-QualityKTL-coating
- anti-slip feature
- extremely durable
- easy opening and closing of the cover due to boltless locking system SIDE-LOCK
- various covers: closed, with opening for cable outlet
= Design Flexibility | Performance assured
OPTIONAL BLIND COVER FOR DUCTILE IRON GRATING WITH CABLE OPENING
- KTL-coated
- easy opening and closing of the cable inlet and outlet
= Design Flexibility
LARGE, CLEAR CROSS-SECTION
- storage space for cables and wires
- optional on two levels (see cable routing system accessories)
= Design Flexibility
OPTIONAL CABLE-ROUTING SYSTEM
- for guiding cables and wires in an elevated position (see cable routing system accessories)
- easier laying and accessibility of cables and lines
= Design Flexibility
THE SYSTEM IN DETAIL
Channels made of PP with integrated angle housing, according to DIN V 19580 / EN 1433, with groove and tongue connection for exact installation
Ductile iron cover, with anti-slip surface , KTL-coated, highly resistant
Ductile iron cover with opening for cables, anti-slip surface , KTL-coated, highly resistant, can be combined with the ductile iron cover
Cable routing system galvanised for laying various media and cables
Cover for cable opening for ductile iron cover, black, KTL-coated
End cap without outlet, galvanised
